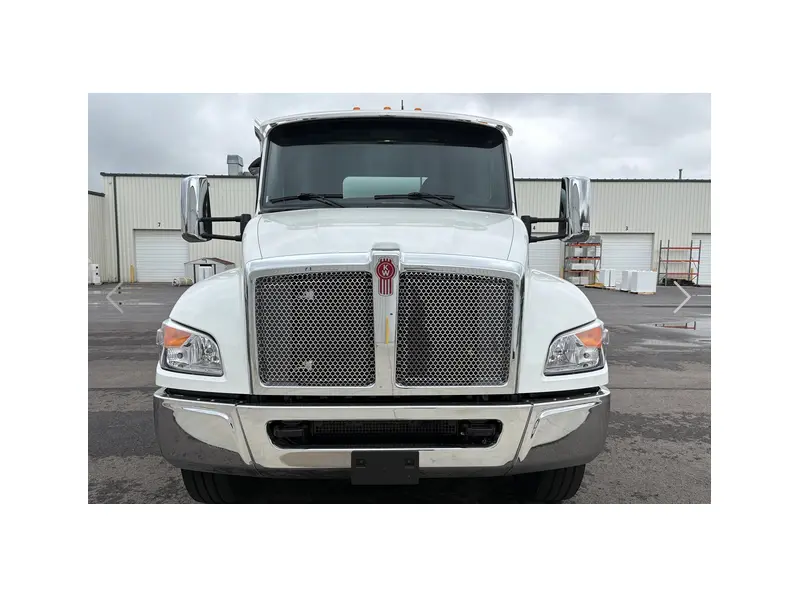

2026 KENWORTH T380

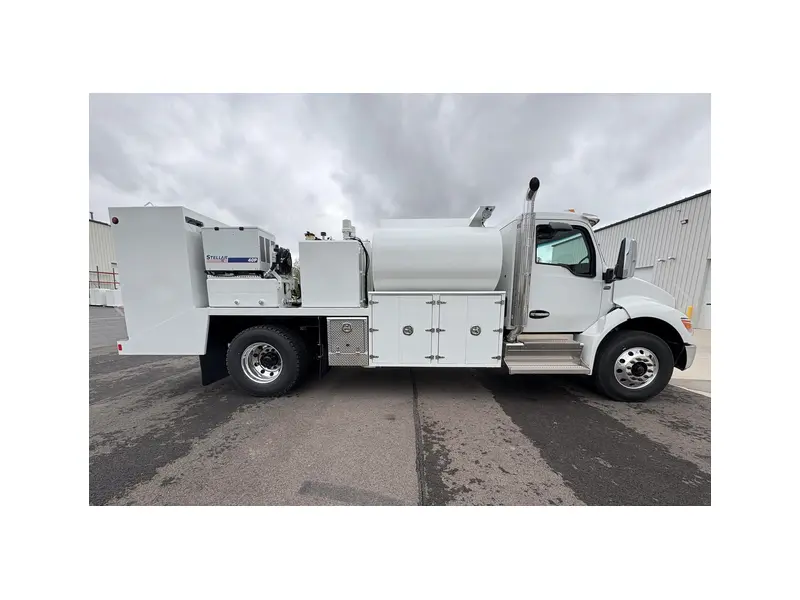

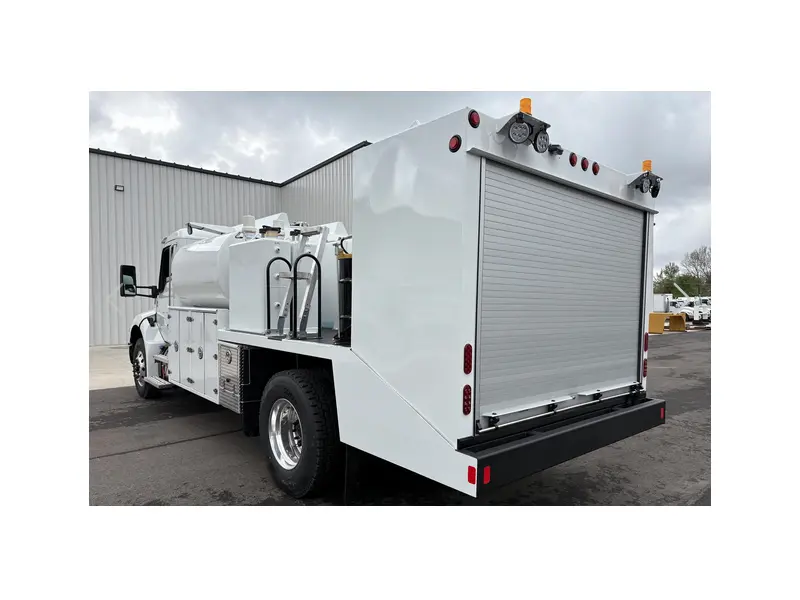

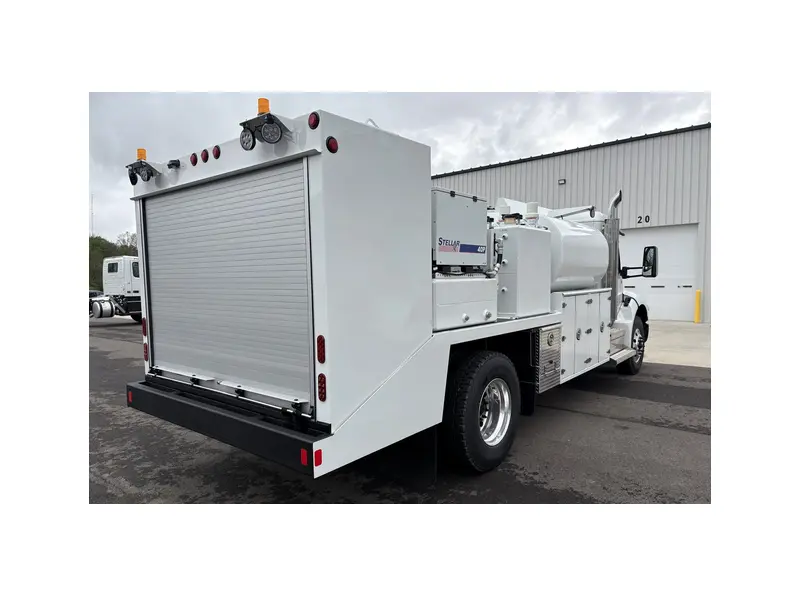

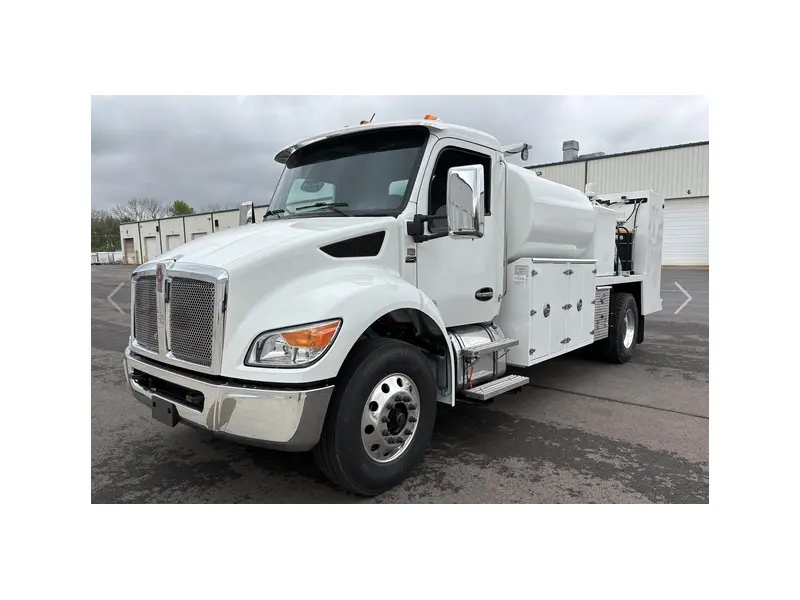

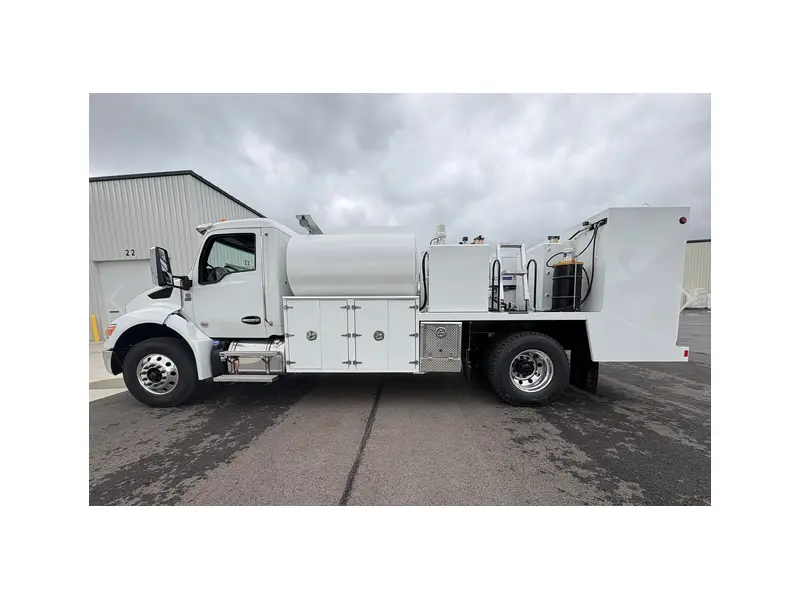

2026 Kenworth T380 33000 gvwr, 4x2 fuel/lube truck. Allison Auto transmission

FUEL TANK - MODIFIED ELLIPTICAL DESIGN

Large radii shell with dished and flanged heads

Tank is built to DOT-406 specifications, but not certified

(1000) U.S. gallons, single compartment

(0.1644) inch high strength low alloy

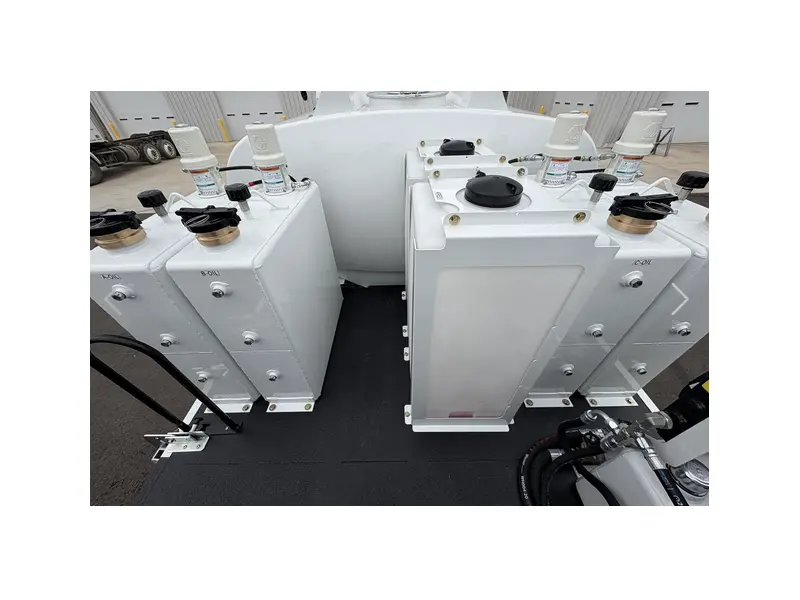

PRODUCT TANKS, RECTANGULAR CONSTRUCTION

(1) each, (120) U.S. gallon used oil tank

(4) each, (60) U.S. gallon oil tanks

(1) each, (55) U.S. gallon anti-freeze tank - poly construction

(1) each, (55) U.S. gallon "DEF" tank - poly construction

(1) each, drum nest and hold-down kit for a (120) lb. commercial drum Large radius formed corners to reducestress concentrations.

Tank corners are "double wall" construction

High strength low alloy formed steel for petroleum products

Poly construction with steel frame for anti-freeze

Structural steel angles

Interior cross baffle

(4.00) inch nominal diameter, non-vented, lockable fill lid

(10) micron atmospheric vent on oil tanks

(3) liquid level sight eyes each tank. (None in fuel or poly tanks)

STORAGE CABINETS

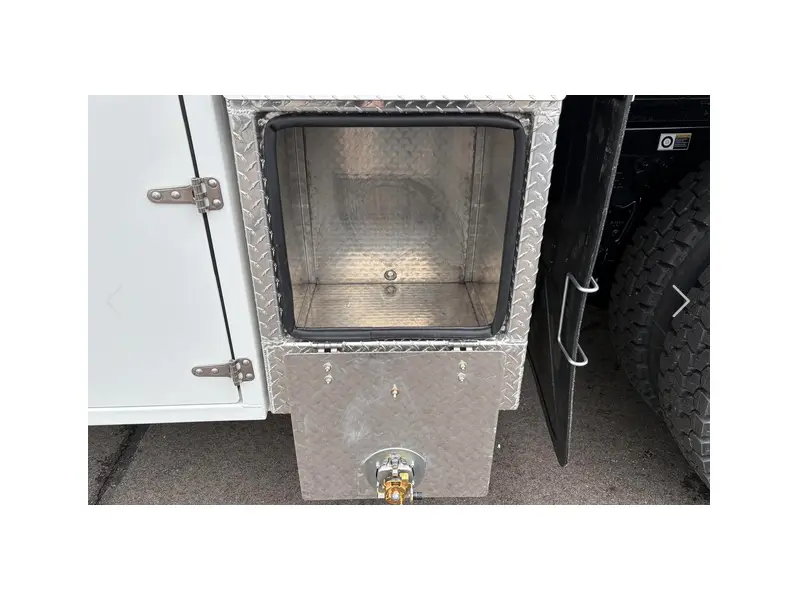

(1) each, (72) in. L x (24) in. D x (42) in. H with sloped back for tank clearance equipped with (2) setsofdouble doors, adjustable shelving,(1) each, aluminum treadbrite used filter cabinet sized to fit

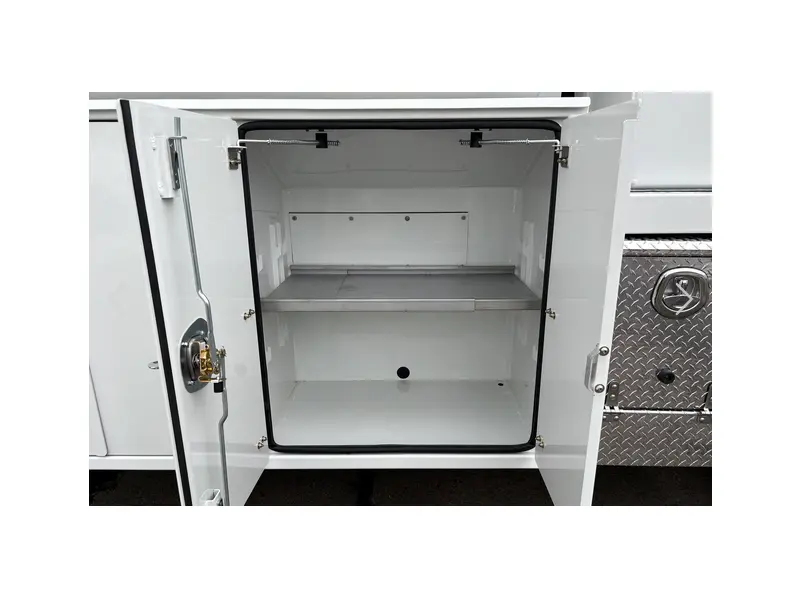

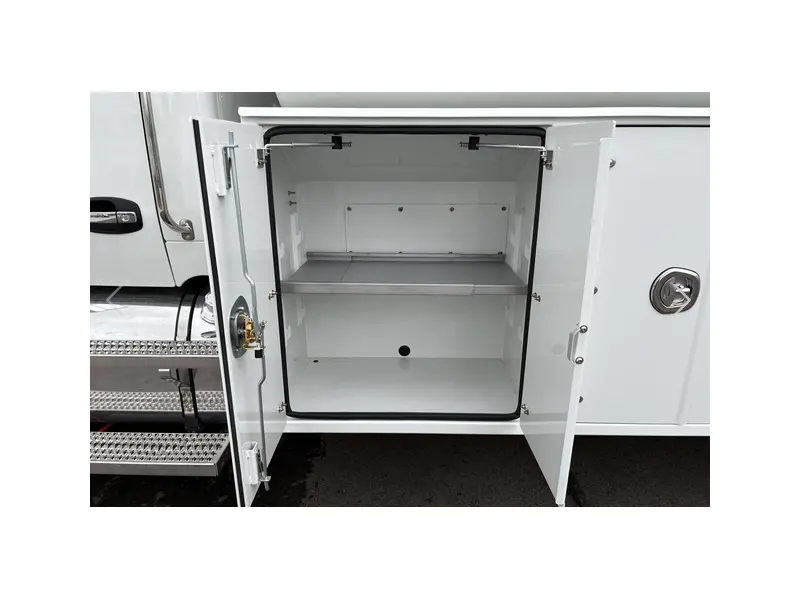

(1) each, (72) in. L x (24) in. D x (42) in. H with sloped back for tank clearance equipped with (2) sets of double doors, and adjustable shelving.(1) each, aluminum treadbrite storage cabinet sized to fit

HYDRAULIC SYSTEM

Open loop, open center hydraulic system

Tandem section gear pump

Transmission mounted power take-off (air or electric shift)

(10) micron return line filter with indicator gauge

Heat exchanger with 12 VDC electric fan

AIR SUPPLY SYSTEM

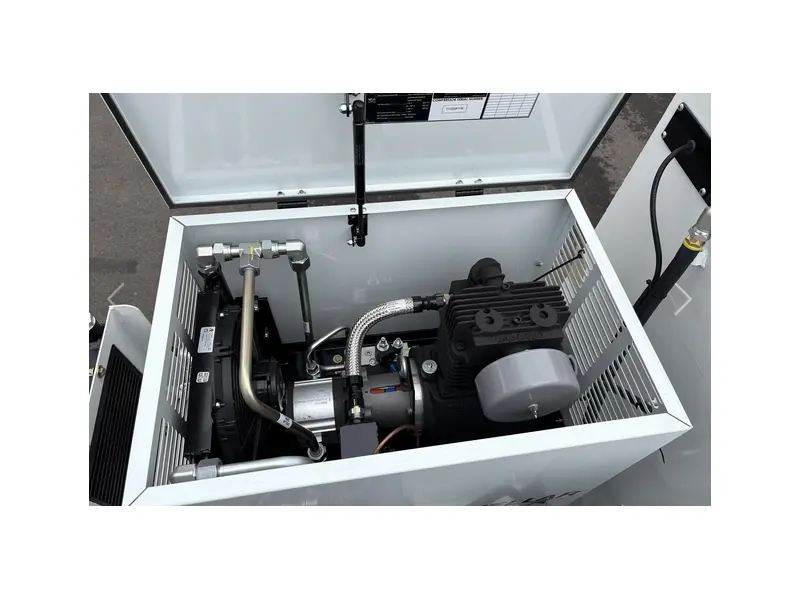

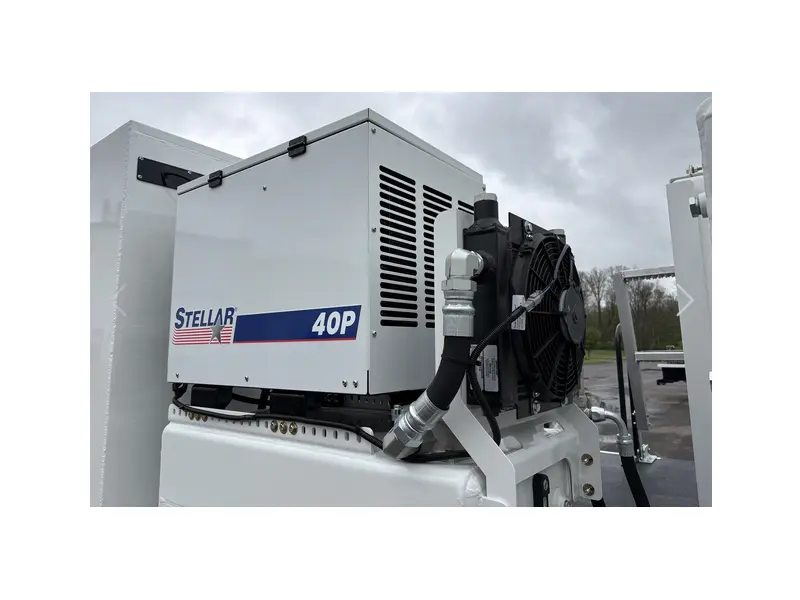

Hydraulic driven 40P piston compressor (40 CFM)

Hannay spring rewind hose reel with (50) feet of (1/2) inch air hose ASME certified air receiver withair filter,lubricator, and regulator(s)

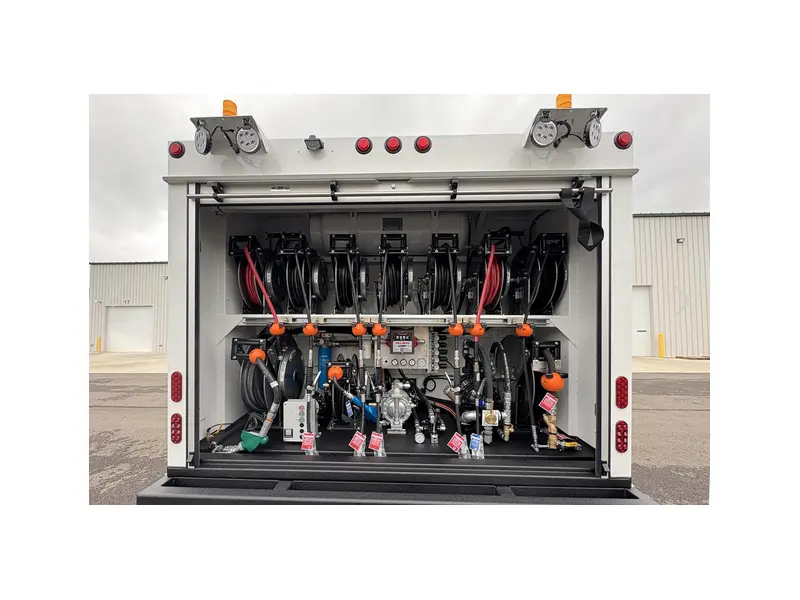

USED OIL SYSTEM

Air operated (1.50) inch Graco diaphragm pump

(4) way valve allows suction and discharge from the on-board tank (1) each, "Y" type suction strainer

The used filter cabinet drain port is plumbed into the used oil system. Hannay spring rewind hosereel with (30) feet of (1.00) inch hose & ball valve

ANTI-FREEZE SYSTEM

Air operated (1.00) inch diaphragm pump

Hannay spring rewind hose reel with (50) feet of (1/2) inch hose Graco 200 series dispense valve

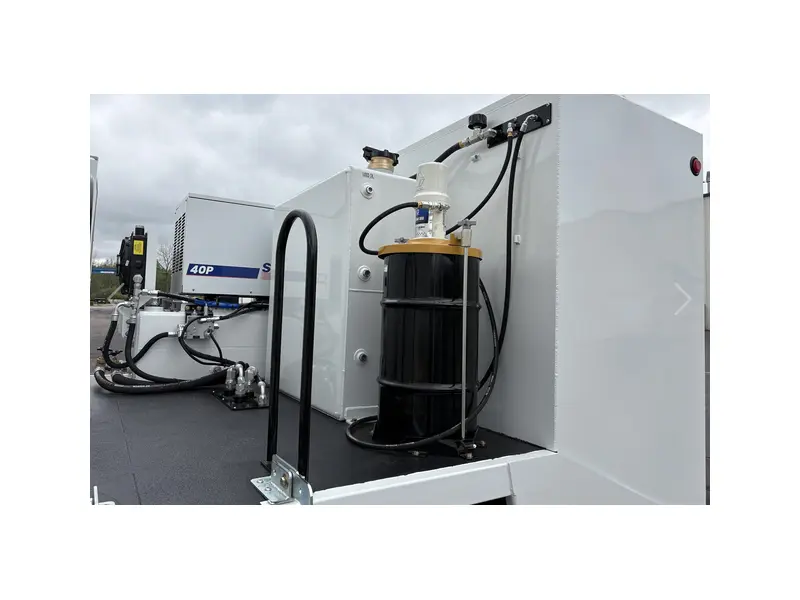

GREASE SYSTEM, HIGH PRESSURE

Air operated (50:1) ratio Graco pump

Hannay spring rewind hose reel with (50) feet of (3/8) inch hose Graco high pressure dispense valve

DEF SYSTEM

12V pump for DEF system.

Kenworth T380 models available as well.

Call or email for a quote listed all equipment on Fuel/lube truck Thanks
