Lubemate Lube and Fuel Trailers

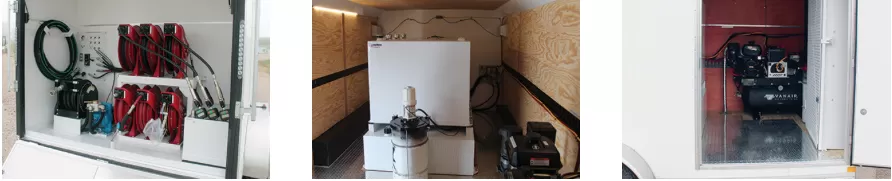

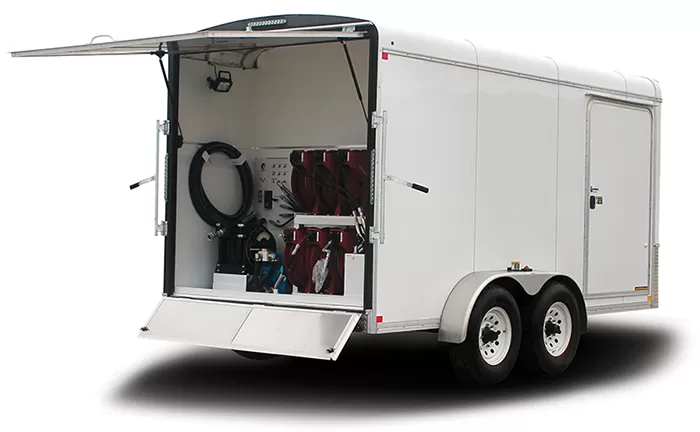

LubeMate® Enclosed Lube Trailers

Reduce costly downtime by servicing equipment according to maintenance schedules with the need for a dedicated service truck. Trailers are equipped tandem axles and hydraulic or electric brakes with all necessary wiring, while tanks are independently mounted with vibration dampening springs and pads. All reels and equipment are out of the weather with the added benefit of added security to your on-site service equipment

  •  7’ x 14’ enclosed trailer (white)
  • 7,000 lb torsion axles
  • 48” side access door
  • Insulated sidewalls
  • 24” ATP rock guard
  • LED lights
  • Radial tires
  • Partition wall separating the hose reels from the tanks

Lube Equipment

  • Three (3) 100-gallon fresh oil tanks
  • One (1) 100-gallon stainless steel A/F tank
  • One (1) 200-gallon waste oil tank
  • One (1) 120 lb grease kit


  • New Oil – Balcrank 3:1 pneumatic pumps
  • A/F – 1/2” diaphragm pump
  • Waste Oil – Balcrank 1” diaphragm pump w/4-way valve
  • Grease – Balcrank 50:1 120 lb grease pump


  • New Oil – Reelcraft 1/2” x 50’ oil reel w/digital meter
  • A/F – Reelcraft 1/2” x 50’ A/F reel w/control handle
  • Waste Oil – Reelcraft 1” x 25’ waste oil reel w/quick coupler
  • Grease – 3/8” x 50 grease reel w/control handle
  • Air – 1/2” x 50’ air reel

Power Unit

  • Vanair contractor
  • Kohler 14HP electric start kohler engine
  • Generator – 5000 peak watts 120V/240V
  • Reciprocating compressor
  • 150 max PSI
  • 20 CFM rating
  • 30 gallon air tank
  • 1.75 gallon fuel capacity
  • 19”W x 51”L x 38”H
  • Horizontal split rear door w/ 24” hinged drop gate
  • E-track on both side walls
  • Storage cabinet
  • LED interior lighting
  • Two (2) work lights in rear
  • Trailer coupler 2-5/16”


  • 7-gallon waste oil drain pan w/quick coupler
  • Waste oil stub w/quick coupler for evacuation of waste tank
  • 120 lb grease tie-down kit
  • Used filter drain storage

Other Options Available

  • Gooseneck hitch
  • 8’ wide
  • Various other lengths
  • Multiple heating and AC options
  • Work bench
  • Shelving
  • Barrel storage option
  • Side door ramp

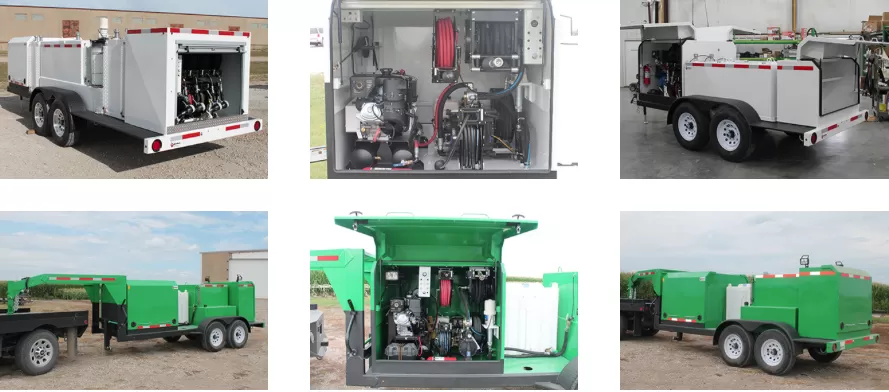

LubeMate® Open Lube Trailers

Keep a preventive maintenance schedule with an affordable alternative to a lube truck. A remote fluid recovery system allows a drain pan to be placed under equipment and used oil to be pumped into the holding tank. Tanks are independently mounted with vibration dampening springs and pads, while each tank is equipped with a 3:1 or 5:1 pump, hose reel as standard equipment. Features include electric start air compressor with Honda or Kohler engine and a tandem axle with hydraulic or electric brakes and all necessary wiring. All reels and equipment are out of the weather and secure. (Any tank configuration or size can be made)

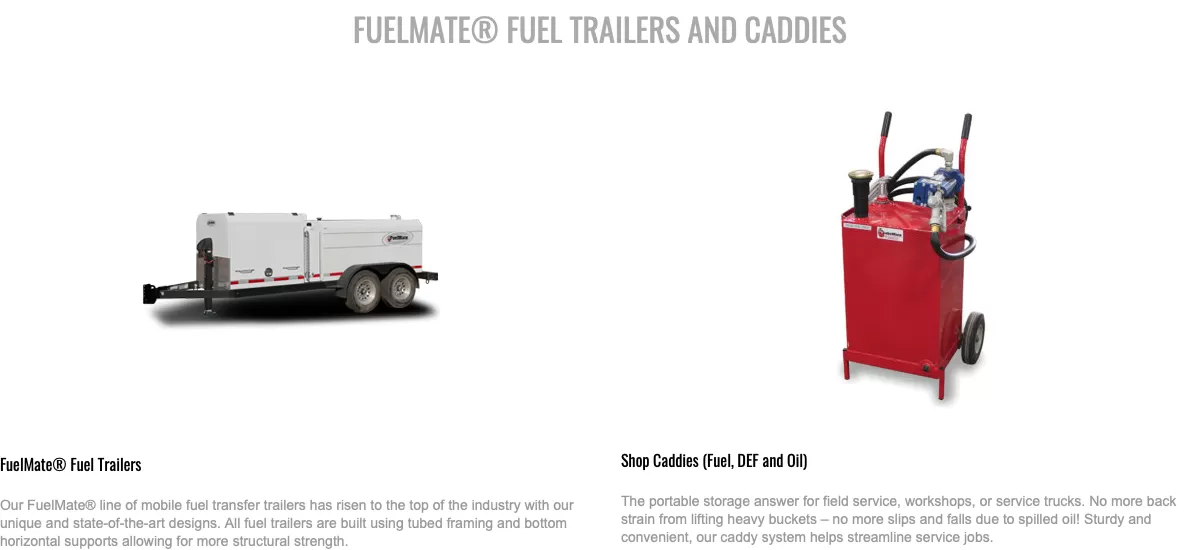

fuel trailer and shop caddy
