Truck Mounted Air Compressors

Single-Stage Piston Air Compressors

Direct-drive, no belts to break or adjust. Cast iron crankcase and cylinder heads for durability.

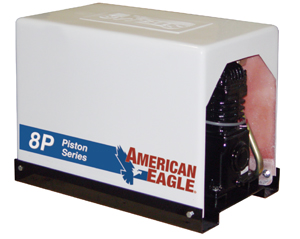

Model 8P
• 8 cfm @ 100 psi
• Hyd. req: 7 gpm @ 1800 psi
• Max. pressure: 150 psi
• Single-stage, Two-cylinder
• Imbedded air filter
• 23″L x14.5″W x 17″H
• Weight: 125 lbs
• Uses Model 143 Pump

Model 13P
• 13 cfm @ 100 psi
• Hyd. req: 7 gpm @ 1800 psi
• Max. pressure: 150 psi
• Single-stage, Two-cylinder
• Imbedded air filter
• 26″L x 14.5″W x 17″H
• Weight: 135 lbs
• Uses Model 200 Pump

Model 30P
• 30 cfm @ 100 psi
• Hyd. req: 11 gpm @ 1650 psi
• Max. pressure: 150 psi
• Single-stage, Four-cylinder
• Canister air filter
• 28.25″L x 20″W x 19.75″H
• Weight: 225 lbs

Model 40P
• 40 cfm @ 100 psi
• Hyd. req: 12.5 GPM @ 2100 psi
• Max. pressure: 150 psi
• 2-Cylinder, Single-Stage
• 12 VDC @ 20 Amps
• 30”L x 20.0”W x 23”H
• Weight: 240 lbs

Model 70P
• 70 cfm @ 100 psi
• Hyd. req: 18 gpm @ 2650 psi
• Max. pressure: 150 psi
• Single-stage, Four-cylinder
• Canister air filter
• 33″L x 22.5″W x 22″H
• Weight: 325 lbs
• Uses Model HV60 Pump

Two-Stage Piston Air Compressors

Model 23P
 23 cfm @ 175 psi
• Hyd. req: 8 gpm @ 2300 psi
• Max. pressure: 175 psi
• Two-stage, Two-cylinder
• 28″L x 19.5″W x 27.5″H
• Weight: 270 lbs

Model 46P
• 46 cfm @ 175 psi
• Hyd. req: 18 gpm @ 2500 psi
• Max. pressure: 175 psi
• Two-stage, Four-cylinder
• 34″L x 26″W x 29″H
• Weight: 470 lbs

Model 60P
• 60 cfm @ 175 psi
• Hyd. req: 16 gpm @ 2300 psi
• Max. pressure: 175 psi
• Two-stage, Two-cylinder
• 41″L x 26″W x 34″H
• Weight: 625 lbs

Model 110P
• 110 cfm @ 175 psi
• Hyd. req: 24 gpm @ 2300 psi
• Max. pressure: 175 psi
• Two-stage, Four-cylinder
• 44″L x 27.5″W x 31″H
• Weight: 750 lbs

Rotary Screw Air Compressors

Model 30R
• Single-stage oil injected
• 30 cfm @ 100 psi
• Hyd. req: 12 gpm @ 1750 psi
• Max. pressure: 150 psi
• 24″L x 21″W x 20″H
• Weight: 170 lbs

Model 45R
• Single-stage oil injected
• 45 cfm @ 100 psi
• Hyd. req: 12 gpm @ 2600 psi
• Max. pressure: 150 psi
• 28.75″L x 21.75″H x 23″W
• Weight: 325 lbs

Model 65R
• Single-stage oil injected
• 65 cfm @ 100 psi
• Hyd. req: 18 gpm @ 2750 psi
• Max. pressure: 150 psi
• 32″L x 21.75″H x 23″W
• Weight: 345 lbs

Model 130R

• Single-stage oil injected
• 100-150 psi
• 130 cfm @ 150 psi
• 26 gpm @ 2400 psi
• 43.5″L x 31″H x 28″W
• Weight: 325 lbs

Model VR70
• Single-stage oil injected
• Rotary screw compressor
• 70 cfm @ 150/175 psi

Engine Driven Air Compressors

Compressor Pumps

Model 143
• Single-Stage Two-Cylinder
• 2-5/8″ Bore x 2″ Stroke
• Lubrication: Splash
• Discharge: 1/2” NPT
• Flow: 3.1 to 8 CFM
• HP Required: 1, 1-1/2 , 2, 3
• Speeds: 400 to 1250 RPM
• Weight: 52 lbs

Model 200
• Single-Stage Two-Cylinder
• 2-3/4″ Bore x 2.5″ Stroke
• Lubrication: Pressure
• Discharge: 3/4” NPT
• Flow: 8 to 13 CFM
• HP Required: 2, 3, 5
• Speeds: 800 to 1300 RPM
• Weight: 60 lbs

Model V230

• Single-Stage Four-Cylinder
• 2-5/8″ Bore x 2″ Stroke
• Lubrication: Splash
• Discharge: 3/4” NPT
• Flow: 12 to 23 CFM
• HP Required: 3, 5, 7.5
• Speeds: 800 to 1300 RPM
• Weight: 80 lbs
(Shown with optional flywheel)

Model V360
• Single-Stage Four-Cylinder
• 2-5/8″ x 2″ Stroke
• Lubrication: Pressure
• Discharge: 3/4” NPT
• Flow: 12 to 23 CFM
• HP Required: 3, 5, 7.5
• Speeds: 800 to 1300 RPM
• Weight: 70 lbs

Model V480
• Single-Stage Four-Cylinder
• 2-3/4″ x 2 1/2″ Stroke
• Lubrication: Pressure
• Discharge: 3/4” NPT
• Flow: 16 to 30 CFM
• HP Required: 5, 7.5, 10
• Speeds: 800 to 1300 RPM
• Weight: 89 lbs

Model HV60
• Single-Stage Four-Cylinder
• 3.4″ Bore x 3.6″ Stroke
• Lubrication: Pressure
• Discharge: 1” NPT
• Flow: 52 to 70 CFM
• HP Required: 20, 25
• Speeds: 1000 to 1200 RPM
• Weight: 117 lbs

Options include:
• Embedded or canister air inlet filters
• Head unloader
• Pilot valve
• Air cooled or water cooled heads
• 10″, 12″ or 14″ flywheel

(All pumps are single-stage 150 PSI max)
